Customization: Available
After-sales Service: Online
Warranty: One Year
Send Inquiry

Product Description

Basic Info.
Model NO.
FQL450S+BS4522N
Application
Food, Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical
Packaging
Film
Automatic Grade
Automatic
Driven Type
Pneumatic
Manner of Packing
Full Closed
Adjust Speed
Electronic Speed Control
Type
POF Shrink Film Machine
Heating Mode
Stainless Steel Heating
Packaging Material
Film
Customized
Accept
Transport Package
Standard Export Wooden Box
Specification
FQL450S+BS4522N
HS Code
8422309090
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
300.00cm * 150.00cm * 141.00cm
Package Gross Weight
700.000kg

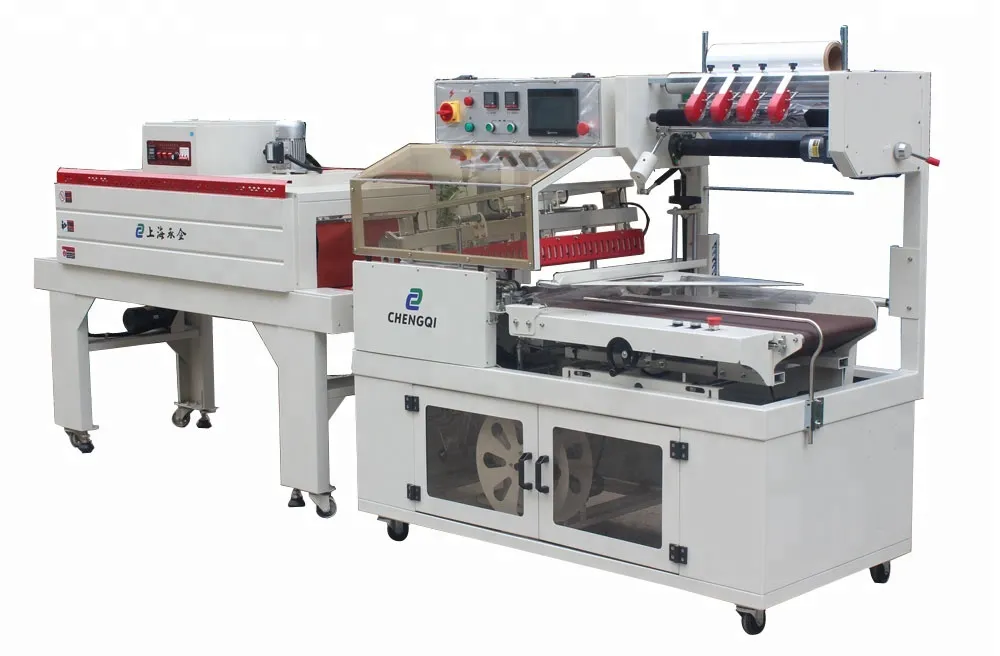

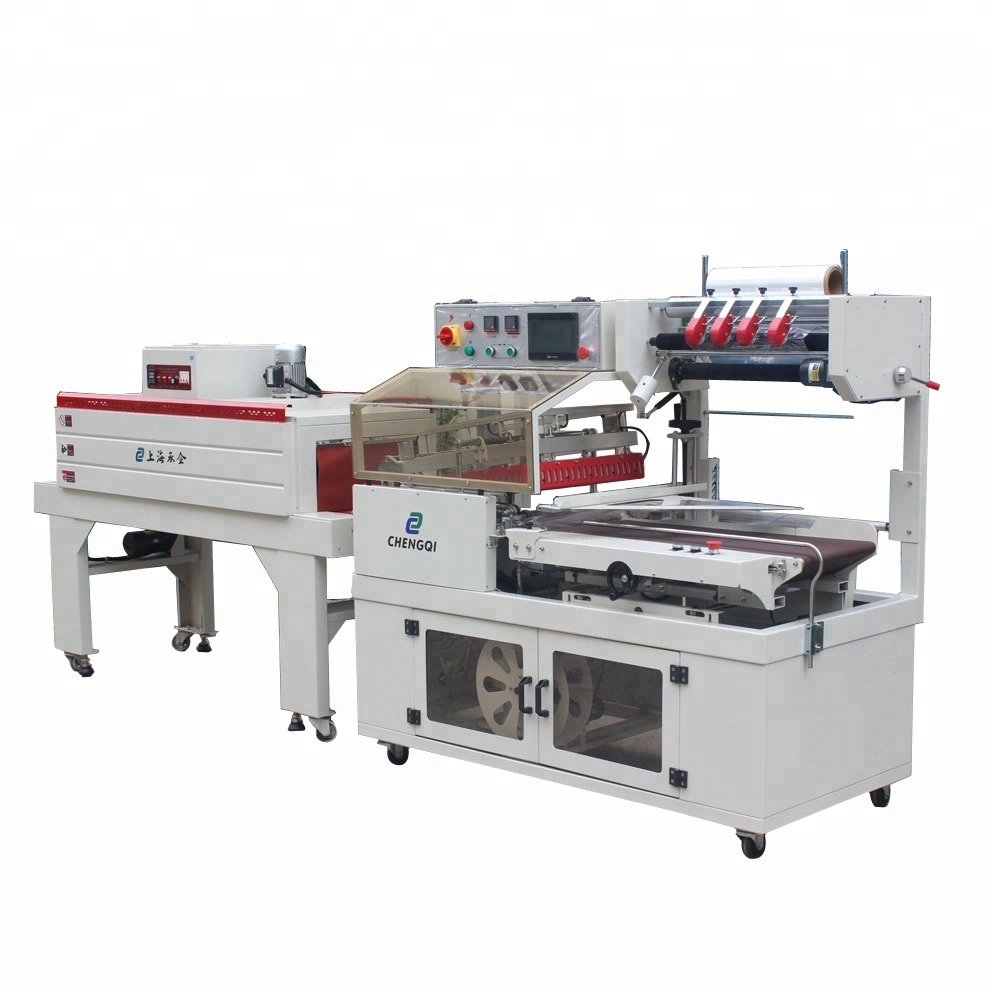

Automatic L Type Sealing & Shrink Wrapping Machine
Product Description
Performance Features
  • FQL450S is a fully automatic L bar sealer widely used in mass production packaging lines with high efficiency.

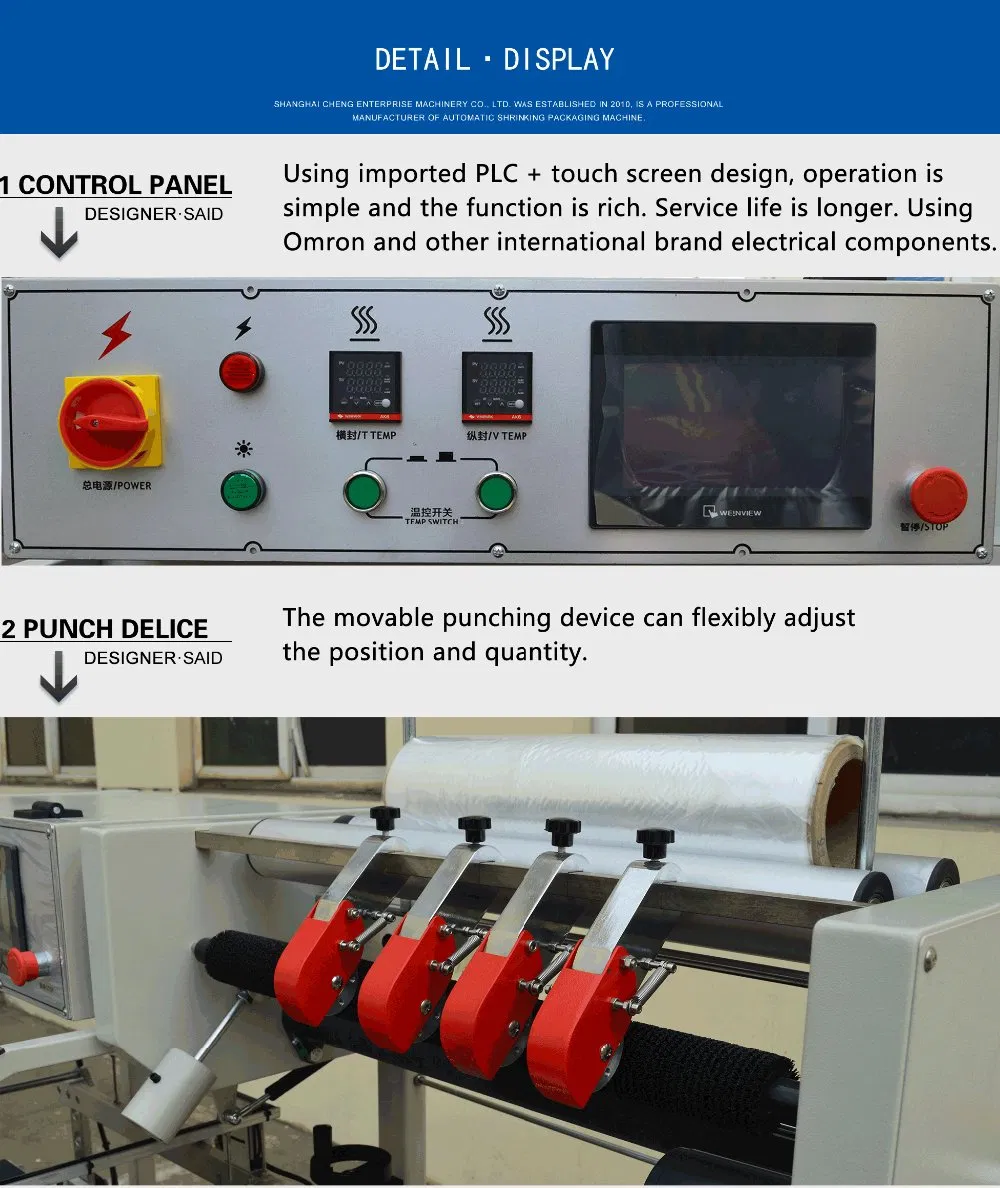

  • Equipped with a movable type punching device to easily switch the punching position and control the pinholes number.
  • Sealing knife uses a special steel knife with Daikin anti-stick coating & anti-high temperature. Prevents cracking, coking, and smoking with zero pollution.
  • Features a digital temperature controller with built-in PID function. The sealing blade temperature is extremely sensitive, accurate, and can be set arbitrarily.
  • Imported photoelectric sensor for accurate positioning and fast response.
  • Adopts Panasonic PLC programmable controller and a 7-inch man-machine interface for simple operation.

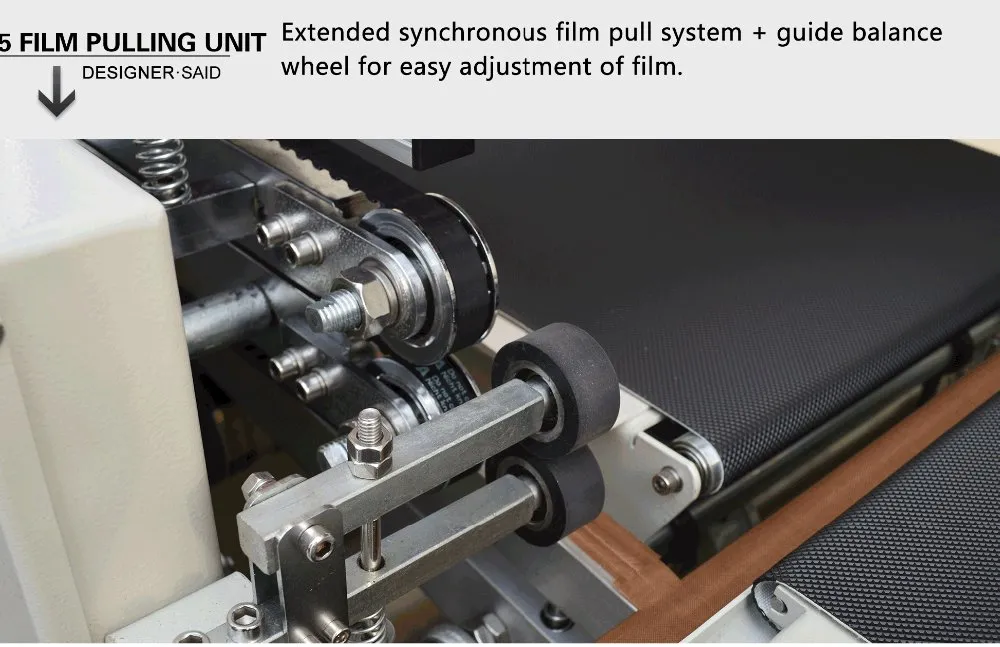

  • Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
  • Equipped with an automatic scrap recycling mechanism and built-in film broken alarm function.
  • The sealing blade itself is equipped with an automatic protection function to prevent accidental cutting.
  • Automatic mode and manual mode can be switched at any time, making it convenient to replace the shrink film.
  • The entire machine realizes unmanned operation when connected to the production line.
  • Applies to daily necessities, food, cosmetics, pharmaceutical, hardware, and other industries shrinking packaging.
  • BS4522N shrink tunnel adopts an internal double recycling air fan design, ensuring hot air in the tunnel is even and constant in temperature.
  • Uses a stainless steel finned heating tube that has a long service life and high heating efficiency.
  • Chain bar conveying, using hollow steel covered with durable imported silicone tube; each bar can rotate freely.
  • Suitable for POF, PVC, PP, and PET heat shrinkable films.
Technical Parameter
L bar sealer
Parameter Specification Details
Model FQL450S
Power supply 220V 1ph 50/60Hz
Power 1.8KW
Packing Size (L+H)<550mm (W+H)<400mm (H)<130mm
Sealing Size (L)550×(W)450mm
Table height 800mm
Packaging speed 15~30pcs/min(Determined by product size)
Air source 6kg/cm2
Shrink film POF fold film
Shrink film size (W)≤530mm; (D)≤250mm; (weight)≤35KG
Sealing form L type full closed

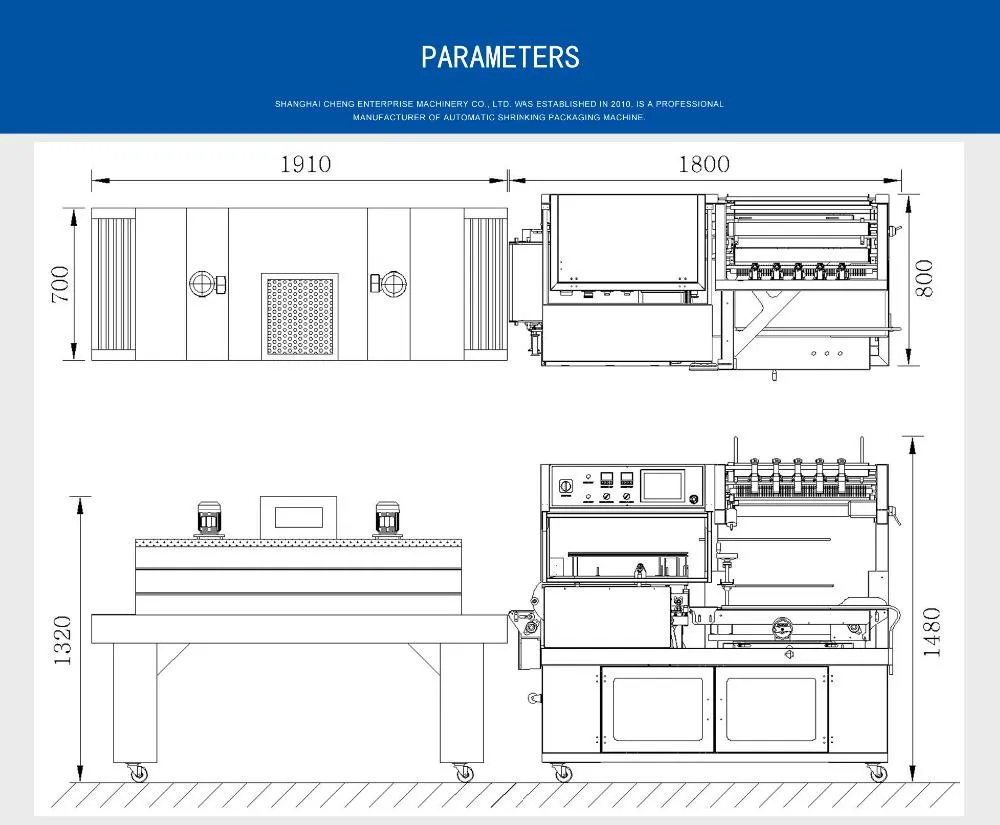

Overall dimension (L)1800×(W)800×(H)1480mm
Package size (L)1850×(W)900×(H)1630mm
G./N. weight 390/320KG
Heat shrink tunnel
Parameter Specification Details
Model BS4522N
Power supply 380V 3ph 50/60 Hz
Power 12KW
Table height 780+50mm
Conveyor load 30KG
Conveyor speed 1-15m/min
Tunnel size(L×W×H) 1500×450×220mm
Overall dimension(L×W×H) 1910×700×1320mm
Package size(L×W×H) 1960×800×1470mm
G./N. weight 250/200Kg
Detailed Images

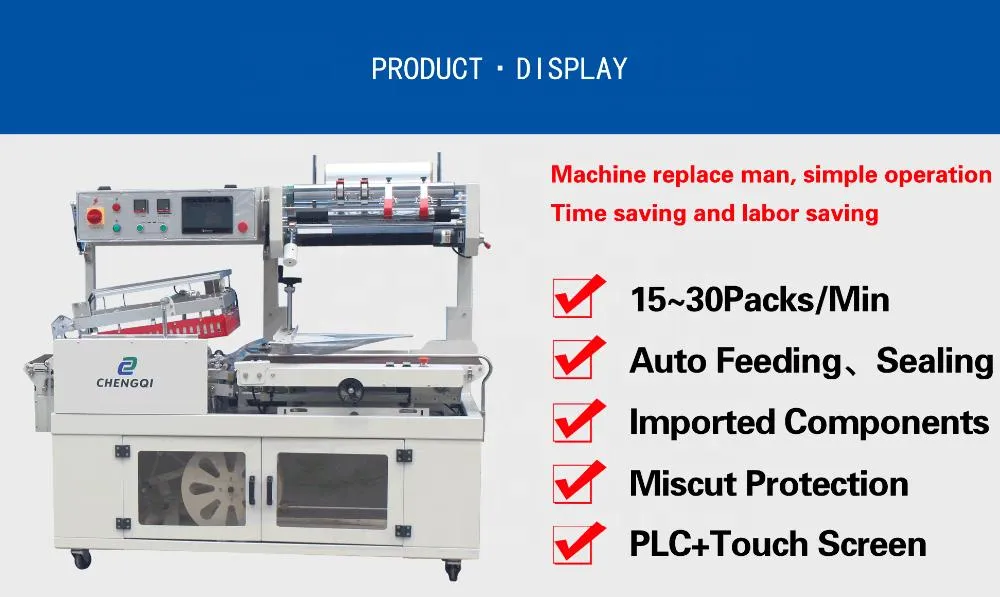

Detailed View 1
Detailed View 2

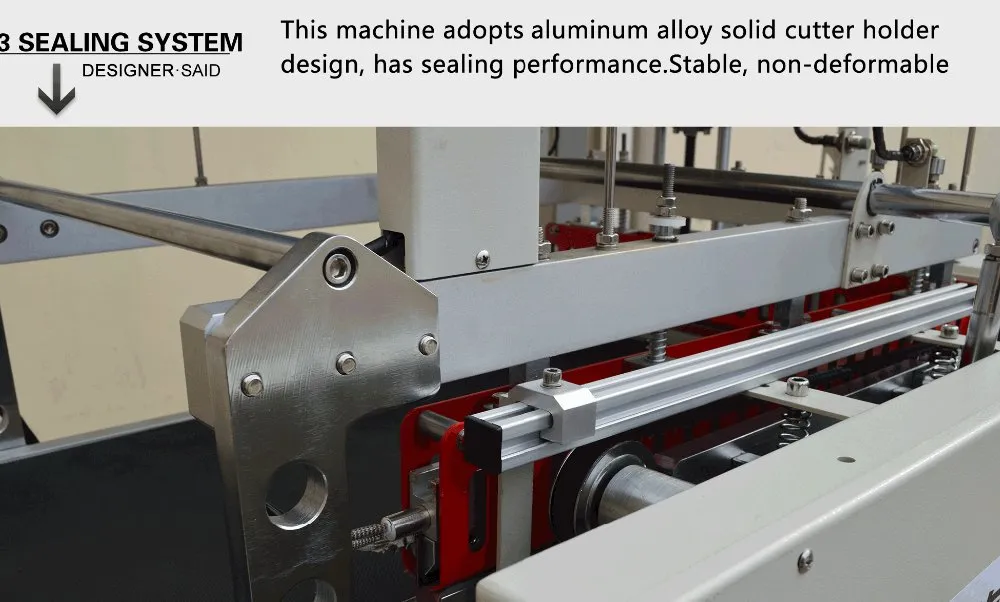

Detailed View 3

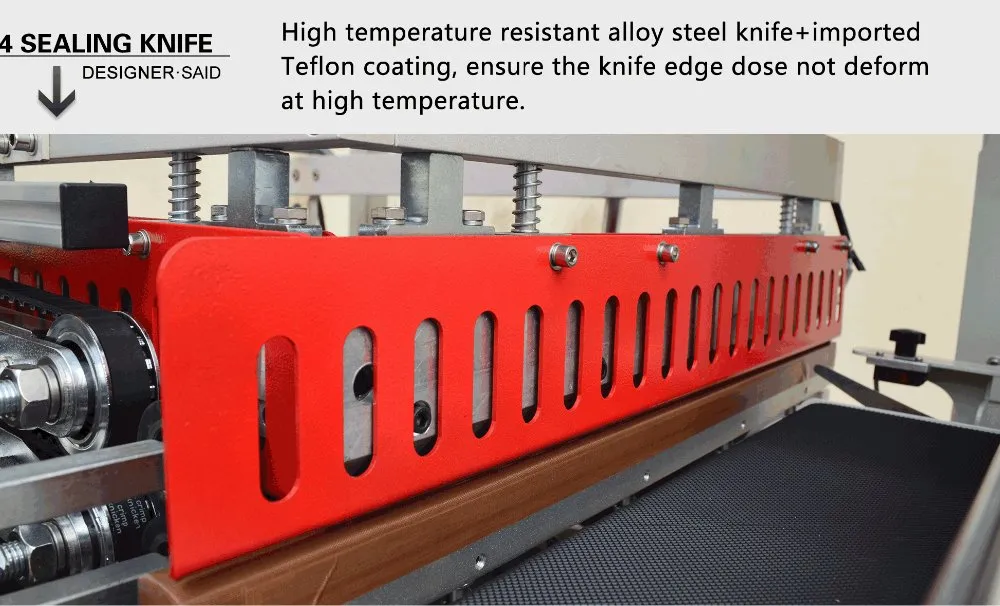

Detailed View 4
Detailed View 5

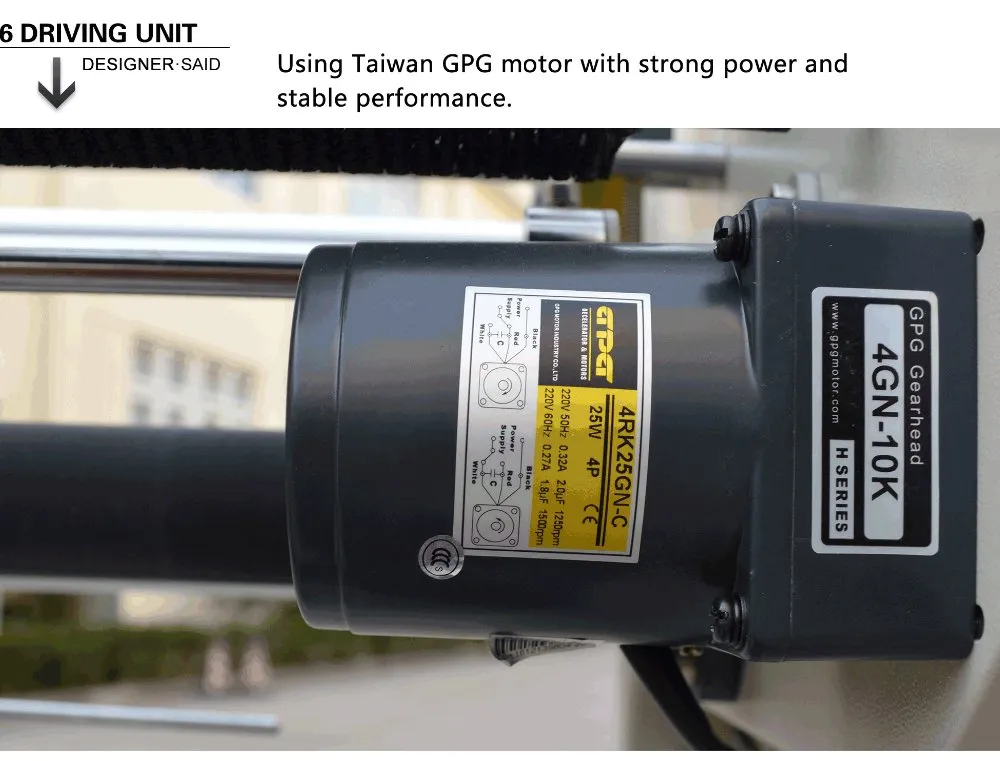

Detailed View 6
Detailed View 7
Application Range

Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware, and other industries' large quantities of shrink wrap.

Application Range Grid
Packing & Delivery

Packaging Details: Standard Export Wooden Box

Delivery Detail: Common specifications are available in stock

Packaging Box Image
Shipping Method Image
Our Service
  1. We can customize the machine according to your requirements and your products.
  2. One-year Warranty: We will replace spare parts for free within one year for non-man-made damage (excluding wearing parts). After the guarantee period, we offer you the most favorable lifelong spare parts support.
Frequently Asked Questions
Q1: How do we test your machine?
When the machine is completely manufactured, we will send a video for you to check. You can also come to our factory to test the machine and learn how to operate it in person.
Q2: What information should I provide when I need an offer?
Normally, please tell us what product you plan to pack and provide your product dimensions (Length * Width * Height) along with its weight so we can quote exactly what you need.
Q3: Which types of shrink film are compatible with this system?
The L Bar Sealer and Shrink Tunnel system is highly compatible with POF, PVC, PP, and PET heat shrinkable films.
Q4: Is customized sizing available for specific packaging requirements?
Yes, we customize our machines according to your operational requirements and specific product parameters.
Q5: What is the warranty policy for the FQL450S and BS4522N combination?
We offer a one-year warranty on non-man-made damage, excluding wearing parts. We also provide lifetime support with favorable pricing for replacement parts.
Q6: What safety features are integrated into the sealing blade?
The sealing blade itself is equipped with an automatic protection function that prevents accidental cutting during operation, protecting both operators and the product.
