Basic Info.
Max Feeder Size
650mm*600mm
Processed Materials
Cardboard 200~800 GSM, Corrugated E-Flute and F-F
Machine Dimensions
13.5m*1.25m*1.7m
Electrical Connected Load
16kw
Power Supply
380 Volts 3 Phase 50 Hz
Air Compressor Capacity
10 M3/H
Specification
Max Feeder Width: 650mm
Production Capacity
30sets/Month
Product Description

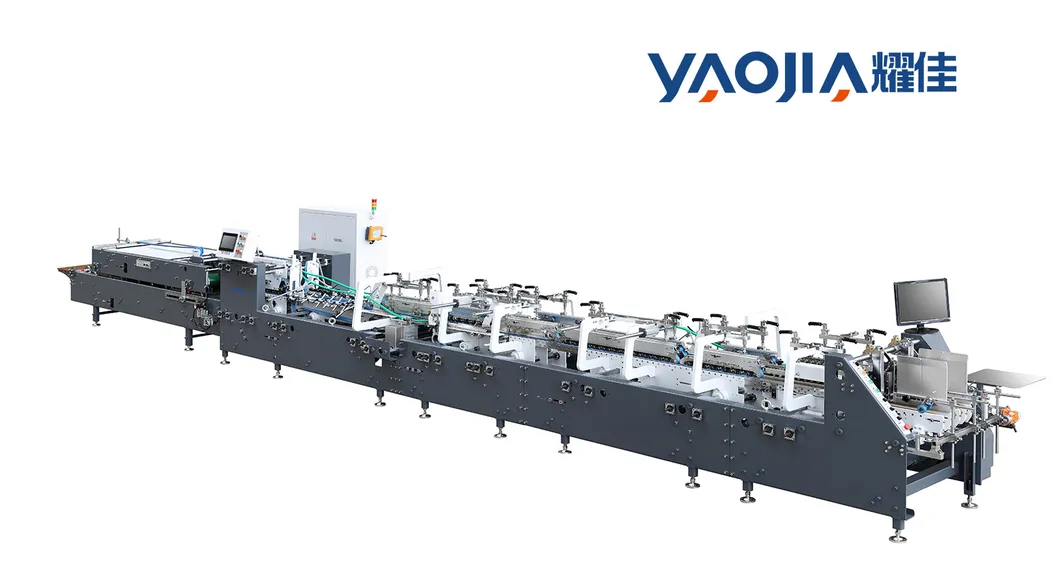

Pioneer YJA-700 for straight line box, bottom lock box, side glue box, box inside box, mini box and some other special-shaped box (irregular box) of high-speed production. The machine max speed is 350 meters/min. Suitable for cardboard 200~800 gsm, corrugated board E-flute and F-flute.
Product Parameters
| Cardboard |
200~800 gsm |
| Corrugated Flute Type |
E-flute and F-flute |
| Speed |
Max. 350 m/min |
| Paper Width Size |
Max. 650 mm, Min. 76 mm |
| Length |
13.5 m |
| Width |
1.25 m |
| Height |
1.7 m |
| Net Weight |
5.2 Ton |
| Electrical Connected Load |
16 KW |
| Power Supply |
380 Volts 3 Phase 50 Hz |
| Compressed Air |
6 bar |
| Air Compressor Capacity |
10 m³/h |
| Air Tank Capacity |
60 L |

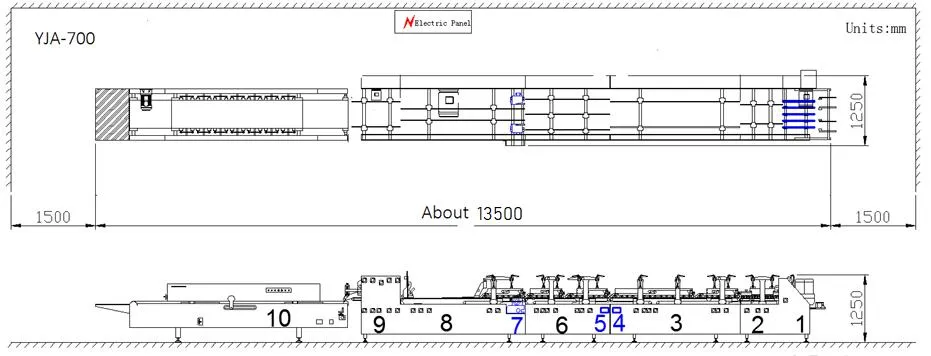

Installation Instructions
Machine Details
Feeder
- Fully Automatic Feeder With Motor
- 5 pcs 30mm Friction Belts Soft Rubber Compound
- 4 Back Carton Supports
- 3 Front paper supports (Quick adjustment for thickness of substrate)
- 2 Paper Side Guides
- Vibrator
- Full Colour Video Monitor (Supervise view final product at the end of the Machine)
Aliening unit
- 2 Bottom Transport Carriers (fitted with 34mm wide Belts)
- 1 left Hand Side Squaring Guide
- 1 Right Hand Side Squaring Guide
- 4 Top paper support guides
- Adjustable top Carriers fitted with independent lever system which can be independently applied giving the desired pressure required for the alignment of Substrate carton blank
Pre-folder unit
- 1st and 3rd crease
- 1st and 3rd Crease Pre Folding up to 180 and 135 degrees helping to break the fiber of rigged board
- 3 Bottom Carriers
- 3 Top carriers
Crash bottom lock unit
- 3 Bottom Transport carriers
- 3 Top Transport carriers
- Bottom chromed support bars
4 And 6 Corner Device (Optional)
- 2 Servo Drive Motors 2kw Each
- 3 Folding Hooks 4 Corners
- 3 Folding Hooks 6 Corners
- 6 Corner Box Lid Can Be Folded from the Left or Right hand side Of Machine

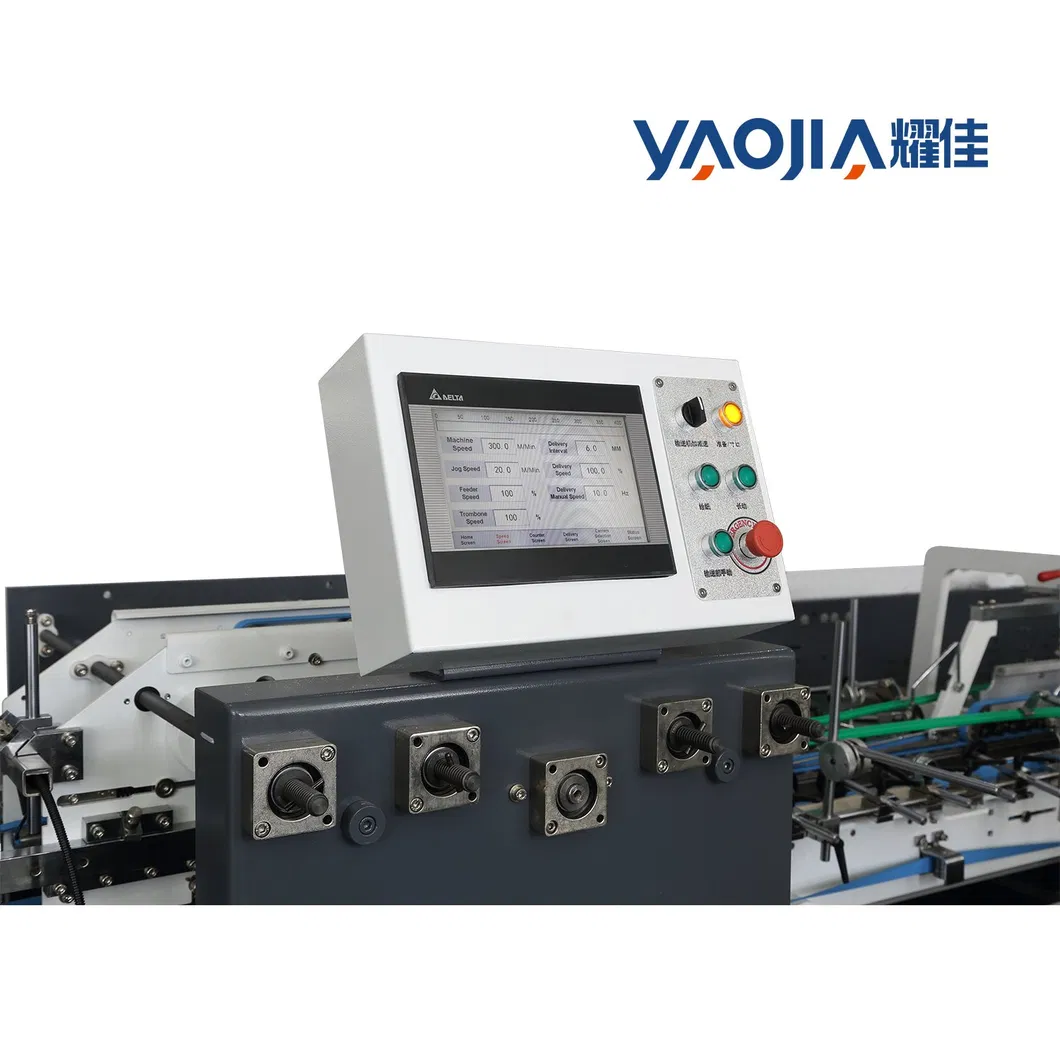

- Moveable Touch screen Commander Module (For programing Measurement's: Speed and position and Electronic angel of the folding Hooks)
Final Folding Unit
- Folding 2 and 4 crease
- Equipped with 2 glue tanks 1 Left 1 Right with 4 M/m disc
- Guide rollers Left and right
- Adjustable speed control of belts left and right
Trombone unit
- Double Trombone (Telescopic)
- Independently motor drive
- Motorized variable speed control of Belt Speed for smooth delivery
Pressing unit
- 1 Drive Motor
- Front and Backward position
- Pneumatic pressing (Adjustable via Pneumatic Regulator valves)
- Squaring Device

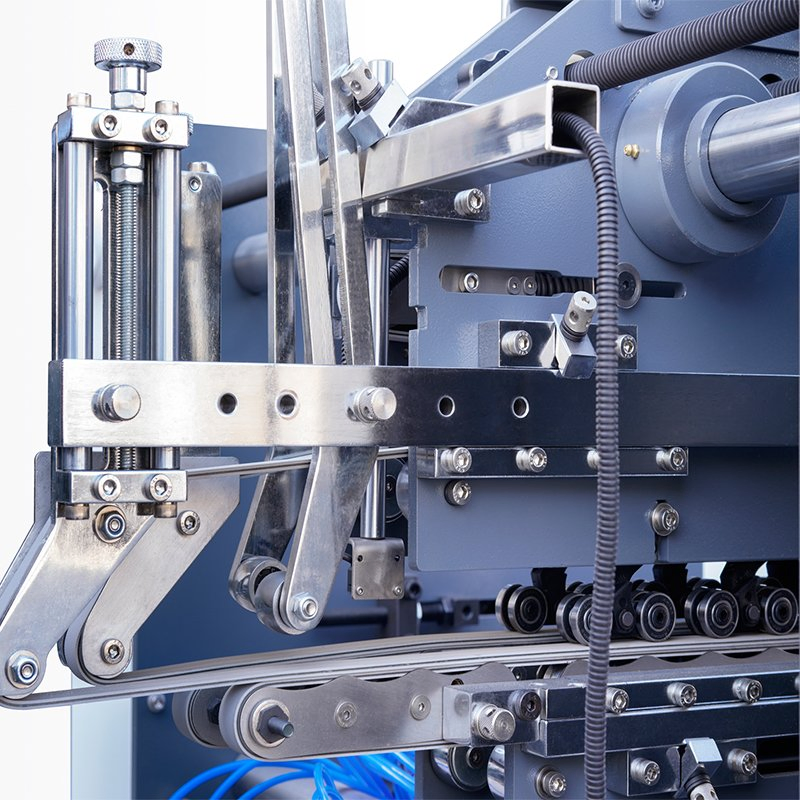

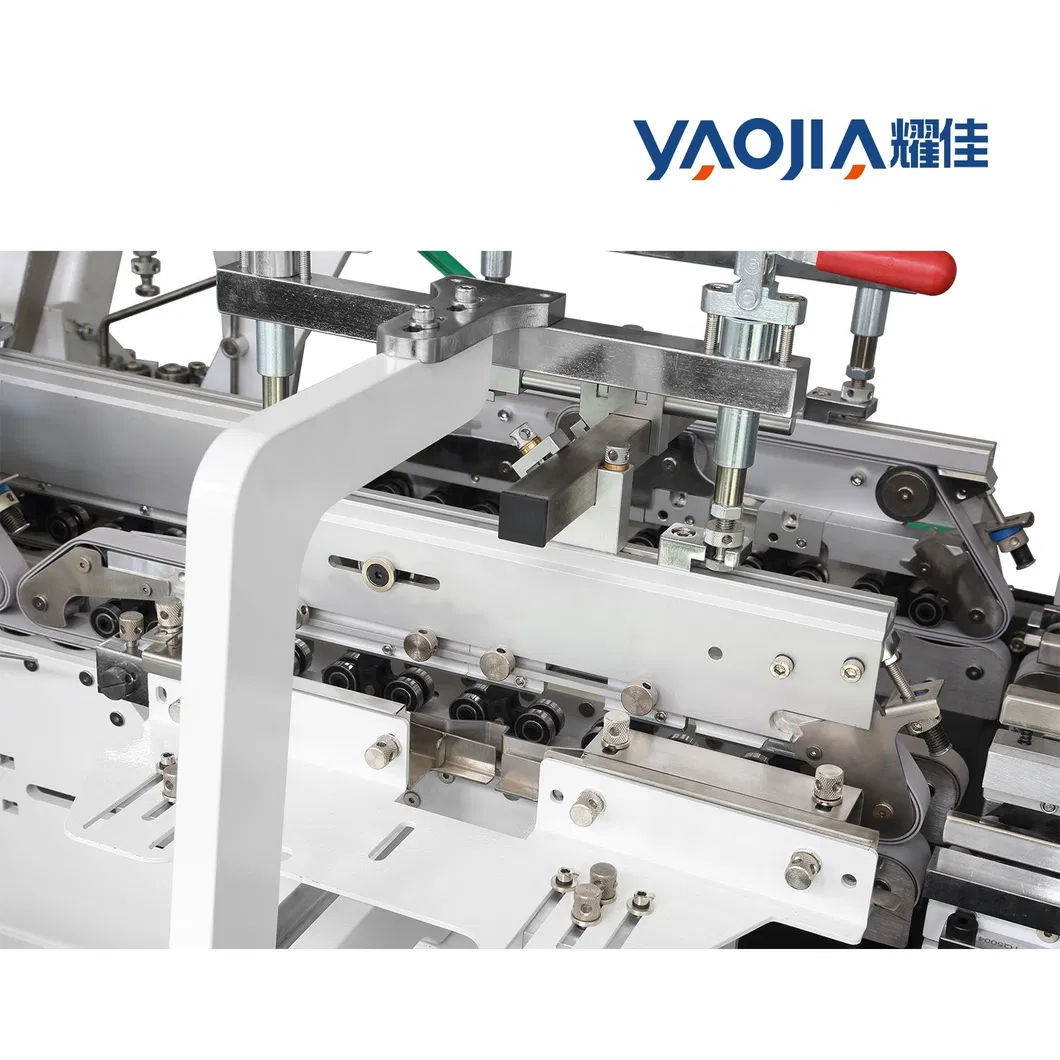

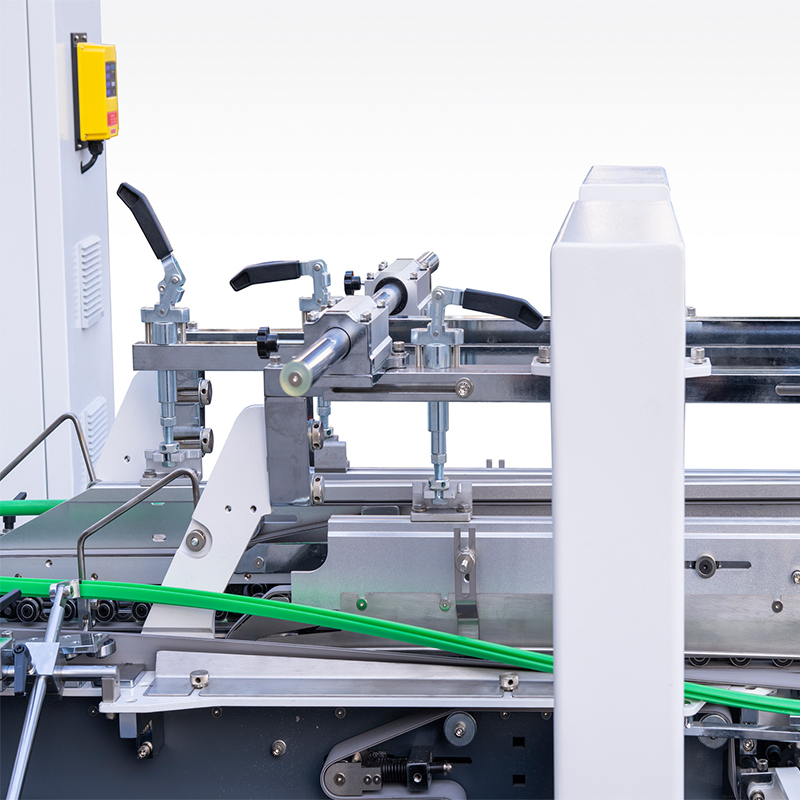

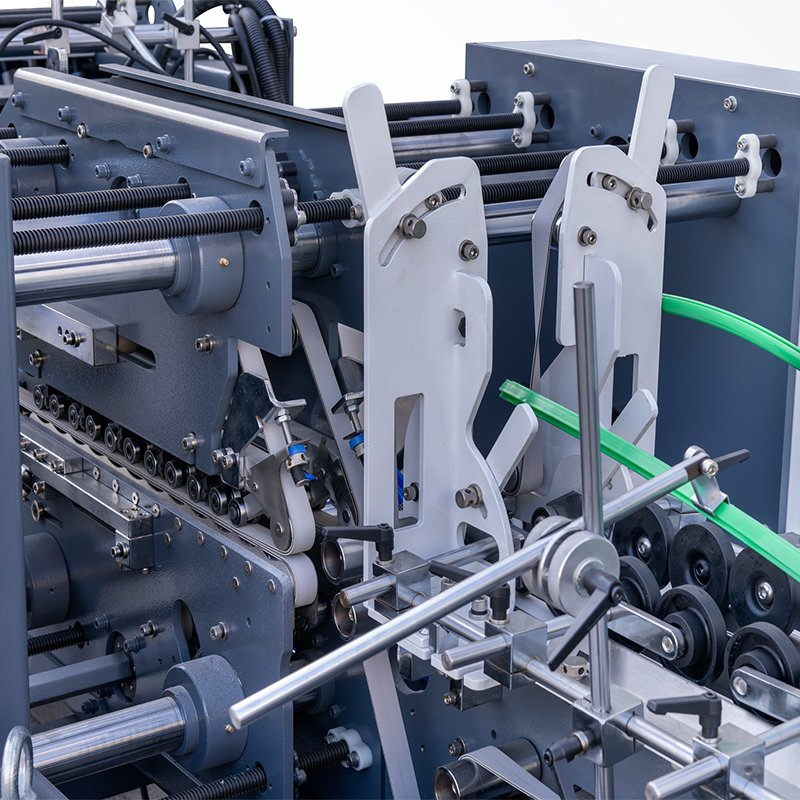

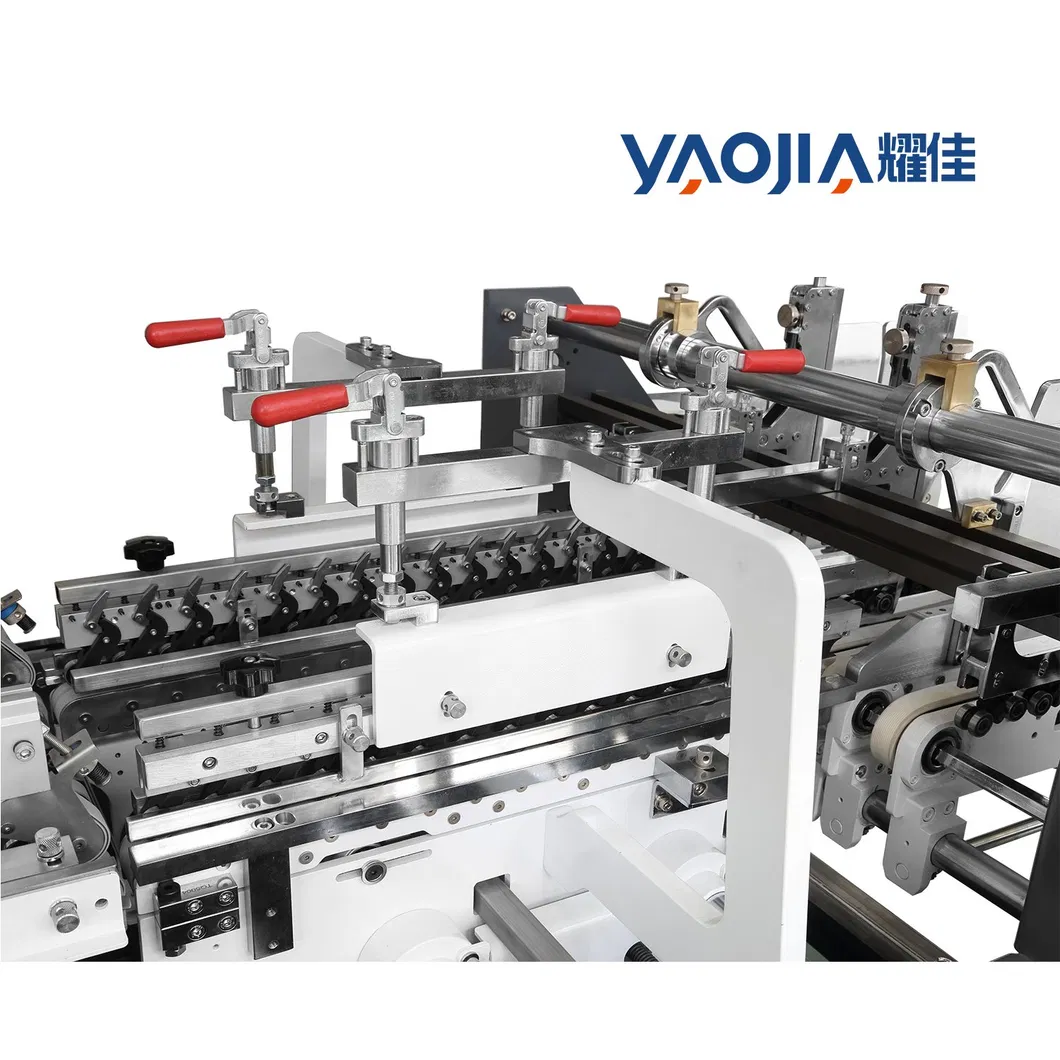

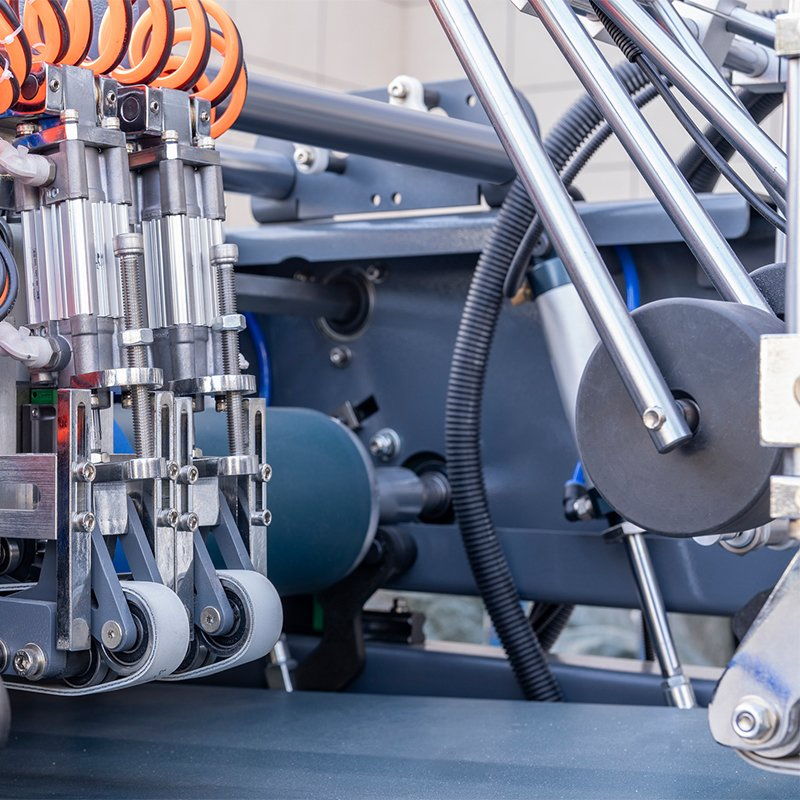

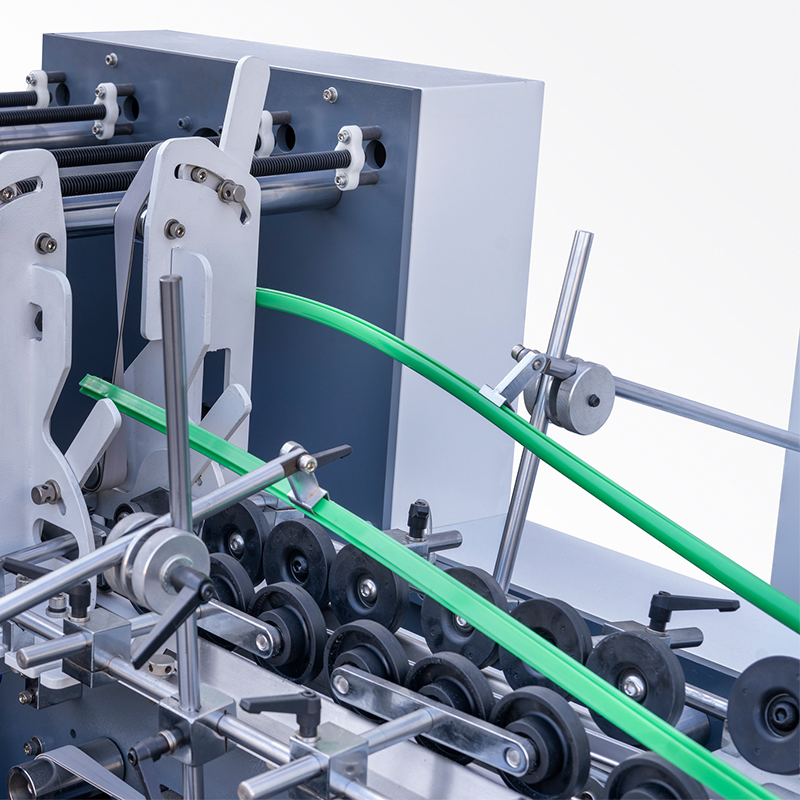

Detailed Photos
Main Products
Company Profile
We are a professional folder gluer machine manufacturer. The company has developed a complete supply chain from R&D, assembly to pre-sale consulting, and sales as well as after-sales service. With rich technology and capital resource, we pay high attention to the innovative design. Every year we have at least one new design machine to satisfy our customers' demand.
The products are sold all over in China and exported to more than 30 countries and regions such as Europe, Southeast Asia, South America, Middle East and Africa. Creating value for customers first is the only way to achieve self-worth. We look forward to cooperating with you!
FAQ
Q1
What is the machine warranty?
The machine warranty is one year.
Q2
Does your machine with CE certificate?
Yes, our machine is equipped with CE certificate.
Q3
What is the production time while placing order?
It takes about 30~45 days after receiving the payment.
Q4
Does the packing strong?
Yes, of course! Packing is with steel pallets, suitable for long-distance road and vessel transportation and various types of weather conditions.
Q5
Do you inspect the finished products?
Yes, we have QC department, they will inspection the machine before shipping, to ensure there is nothing problem of the machine.
Q6
What's the payment term?
T/T 30% in advance, the balance paid before delivery.
